Înregistrator liniar al timpului de uscare
Caster Guide Cube Aplicator

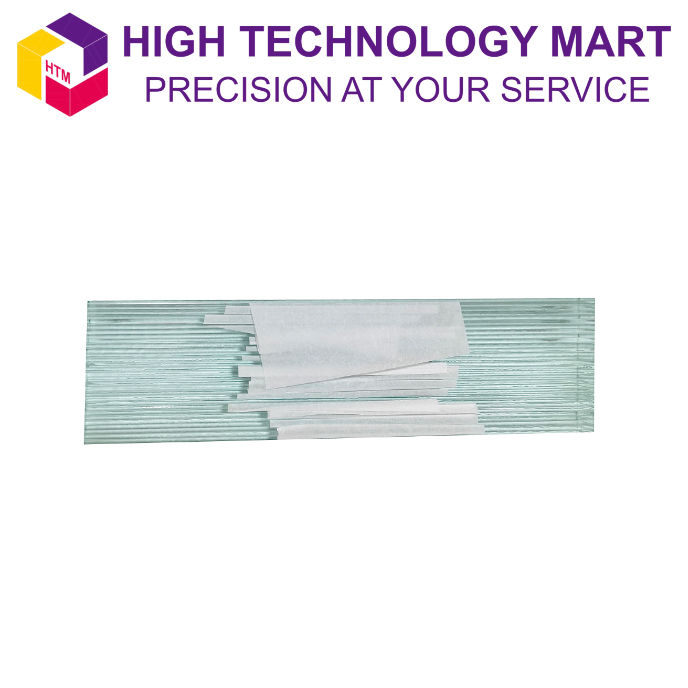

Drying Time Glass Panels


Inregistrator timp de uscare

$158.00 – $980.00

High Technology Mart Inregistrator timp de uscare is an industry-leading measuring instrument for every stage of the coating drying process. It is a Înregistrator liniar al timpului de uscare that can immediately identify the drying time of each track, has the qualities of intuitive menu navigation and high repeatability, and can accurately evaluate each stage.

Adaugă la lista de dorințe
SKU: Nu se aplică Categorie:


Descriere

High Technology Mart Inregistrator timp de uscare is an industry-leading measuring instrument for every stage of the coating drying process. It is a Înregistrator liniar al timpului de uscare that can immediately identify the drying time of each track, has the qualities of intuitive menu navigation and high repeatability, and can accurately evaluate each stage.

Our Cube Film Applicator was used to apply this dependable device for testing the drying duration or gelation behavior of numerous paints and coatings to a 330mm x 24mm glass strip.

Over the course of 6 hours, 12 hours, 24 hours, and 48 hours, hemispherical needles move over these test tracks.

The large LCD Display and precise Graduation on the front of the Drying Time Tester provide a user-friendly and professional evaluation of the Drying Time Stages in accordance with the chosen drying time:

  • Evaporation of the Solvent: Deep pear-shaped impression
  •  Sol-gel Transition: Continuous track
  • Dry Surface: Interrupted track
  • Final Drying Stage: The needle no longer penetrates the film



Drying Time Recorder  – Key Features:

  • Six samples can be analyzed simultaneously to save time.
  • Standard speed is six, twelve, twenty-four, and forty-eight hours, and custom engineered speeds available, continuous speed choose model.
  • Manufactured in accordance DIN EN 14022, ISO 9117-4, and ASTM D5895.

Drying Time Recorder – Test Standards:

  • DIN EN 14022
  • ISO 9117-4
  • ASTM D5895



Beck Koller Test

HTM-DTR1000



Cube Applicator Glass Guide

HTM-CFAC2



Drying Time Glass Panel Set

HTM-GS1



Informații suplimentare

Numărul piesei

Drying Time Recorder HTM-DTR1000, Glass Strip Set HTM-GSS1, Glass Strip Holder HTM-CFAC2, Cube Film Applicator HTM-CFA1

SPECIFICAȚII

Numărul pieseiHTM-DTR1000
Speed6, 12, 24, 48 hours (custom engineered speeds available, continuous speed choose model)
Maximum Number of Tracks6
Weight Set (5 grams per weight)Set of 6 weights
Needle Set (2mm±0.05mm diameter with rounded tip)Set of 6 needles
Voltaj100VAC - 240VAC 50Hz/60Hz
Standarde de testareDIN EN 14022
ISO 9117-4
ASTM D5895

CARACTERISTICI CHEIE

  • Six samples can be analyzed simultaneously to save time.
  • Standard speed is six, twelve, twenty-four, and forty-eight hours, and alternative speeds are available upon request.
  • Manufactured in accordance DIN EN 14022, ISO 9117-4, and ASTM D5895

STANDARDE DE TESTARE

  • DIN EN 14022
  • ISO 9117-4
  • ASTM D5895

ACCESORII OPTIONALE

Optional AccessoriesNumărul piesei
Glass Strip Set (Set of 60 Glass Strips)HTM-GSS1
CasterguideGuide pentru aplicator cubHTM-CFAC2
Aplicator de film cubHTM-CFA1

PRODUSE INCLUSE

  • Inregistrator timp de uscare
  • Adaptor de alimentare
  • Certificat de calibrare
  • Manual de utilizare
